BLENDERS
'V' Blender
- Available in standard cGMP and customized models with SS 304 / 316 / 3l6L contact parts.
- Efficient and versatile machinery for mixing and lubrication of dry powders homogenously.
- Best result achieved due to the suitable medium speed (RPM) and the 'V' shape of the container.
- The 'V' shape gives sufficient continuous movement to the particles thereby resulting in better quality blending.
- Safe operation of the unit ensured.
- Easy handling, cleaning, loading and unloading.
- Modern PLC with manual operating system.
- Available in batch capacities ranging from 50 Kgs to 3,000 Kgs, as per client's requirements, depend on Bulk Density.
Octagonal Blender
- Available in standard cGMP and customized models with SS 304 / 316 / 3l6L contact parts.
- Most suitable for dry mixing of materials in granular form
- Gives best result for granules due to slow RPM and the octagonal shape.
- Provided with limit switch for operator safety
- Manual rotating facility with hand wheel for inching
- Bigger batch size at low power consumption
- Available in batch size ranging from 100 litres to 5000 litres & 3 to 5 ltrs for R & D models, customizable as per client requirement
Ribbon Blender
- The container shape and mixing stirrer gives continues movement resulting in better quality mixing and blending.
- Ribbons are designed such a way as to provide both radial and linear motion for a complete homogeneous mixing
- Provided with dust proof top cover with window.
- Various types of ribbon blenders such as Pressure, Double Spiral etc. are available.
- Available in standard cGMP and customized models with SS 304 / 316 / 316L contact parts.

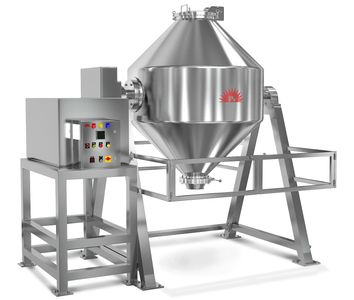

Double Cone Blender
- The conical shape at both ends of Double Cone Blender enables uniform mixing and easy discharge.
- Manual rotating facility with hand wheel for inching.The same will be provided.
- The conical shape on both ends ensures uniform mixing and easy discharge.
- Worm reduction gear used for speed reduction.
- Safety guards provided with limit switch to achieve maximum safety level.
- Modern PLC with manual operating system.
- Available in batch capacities ranging from 50 Kgs to 3,000 Kgs, as per client's requirements, depend on Bulk Density.
- Available in standard cGMP and customized models with SS 304 / 31 6 / 316L contact parts.
Vertical Blender
- An asymmetrical cantilevered machinery with a single helix.
- The helix will self-rotate and the screw arm's revolution complete convection, cutting and diffusion to achieve mixing.
- Modern PLC with manual operating system.
- Can be applied in mixing, reaction, drying and cooling of materials.
- Small amount of liquid can be atomized and sprayed.
- Available in batch capacities ranging from 50 Kgs to 5,000 Kgs, as per client's requirements, depend on Bulk Density.
- Available in standard cGMP and customized models with SS 304 / 316 / 316L contact parts.
